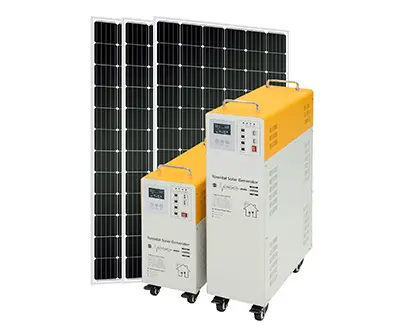

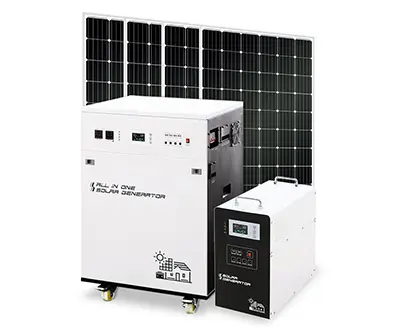

Technical Parameters
Composition: Solar panel, Solar charge controller, Battery and inverter
Classification: Off-grid solar power system

Feature
◆ Self produced power supply, doesn't need to merge into the power grid
◇ Solar energy is available everywhere. It can supply electricity nearby and reduce costs
◆ Xindun Power customized solar power generation system for users

Technical Parameters
Rated Current: 10A-60A; System Voltage: 12V/24V/48V
Product technology: MPPT+APP
Feature
◆ Using the maximum power point tracking technology, compared with the PWM algorithm, the efficiency is increased 15%~20%
◇ Wide PV input voltage range, Auto-ID battery voltage
◆ Pulse width charging mode, unique three stage charging: constant current, constant voltage and floating charge.

Technical Parameters
Battery Specification: 12V 7Ah-200Ah
Battery Type: VRLA
Feature
◆ Fully sealed, adjustable internal gas pressure, no acid leakage, protect environment
◇ Suitable for UPS, EPS, aircraft beacon signal system, electronic instrument and communication system
◆ Successfully passed ISO9001 and CE certification, safety is guaranteed

Technical Parameters
Type: Monocrystalline 10W-350W / Polycrystalline 10W-320W
Feature
◆ High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
◇ High quality,strong aluminium frame,passing mechanical load testing 5400 Pa and wind pressure 2400Pa
◆ 10 years limited product warranty, 25 years for power warranty
◇ Passed ISO9001, TUV, IEC61215, IEC61730, CE, PV CYCLE

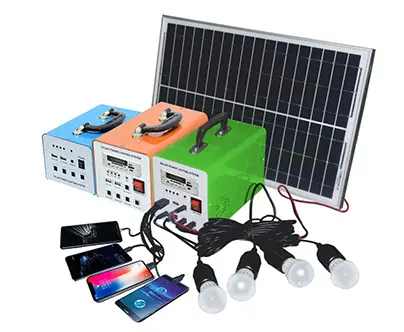

Technical Parameters
Rated Voltage: 10A-60A; Capacity of battery: 7Ah/9Ah/12Ah/20Ah
Power of solar panel: 10W/20W/30W/50W
Feature
◆ Hand-held design, easy to carry when outdoor travel
◇ 4-way 12VDC output, 2-way USB 5V output, have strong practicality
◆ rocker switch, the power supply can be completely cut off. Increase security and reduce standby losses
